MSO7000X series is a new mixed-signal oscilloscope with bandwidth up to 2 GHz and sample rate up to 10 GSa/s. It adopts the unique UltraAcq® technology to enhance the waveform capture rate up to 800,000 wfms/s. It supports a variety of advanced measurement and analysis functions, and up to 48 kinds of parameter automatic measurements, which greatly meets the measurement needs of engineers. Equipped with Win10 64-bit operating system, providing users with a stable and scalable system platform. Adopts 15.6-inch high-definition capacitive touch screen, supporting multi-window split-screen display and multiple gesture touch control. Can be widely used in communications, aerospace, education and many other industries and fields.

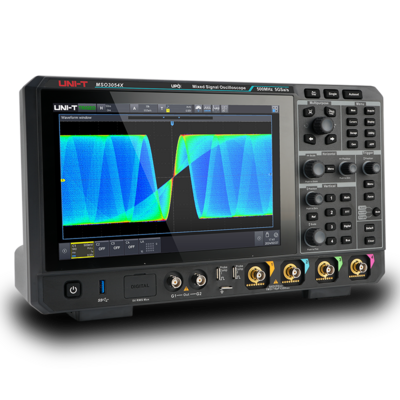

The MSO3000X series mixed-signal oscilloscope provides a maximum sampling rate of 5 GSa/s and a memory depth of up to 500 Mpts. It adopts the exclusive Ultra Phosphor 3.0 technology, achieving a waveform capture rate of up to 2,000,000 wfms/s and features a 256-level brightness color temperature display. With an advanced digital trigger system, it achieves trigger accuracy of 10 ps. The oscilloscope supports 12 types of advanced triggers, 12 types of serial bus triggering and decoding, and advanced functions and analysis modes such as spectrum analysis, power analysis, histograms, waveform recording, enhanced resolution, pass/fail testing, search, and navigation. It is also equipped with extensive measurement and mathematical calculation functions. The device features a 10.1-inch capacitive touchscreen, supporting various gestures for common waveform operations, as well as a WebServer for remote control. It is a versatile and powerful instrument

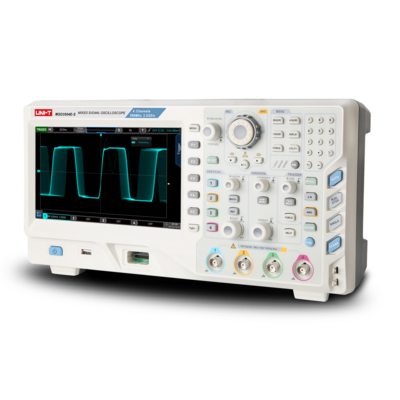

The MSO/UPO3000E series digital phosphor oscilloscope is a multifunctional and high-performance oscilloscope based on UNI-T's original Ultra Phosphor 2.0 technology. It realizes the combination of ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals
The MSO2000X series mixed-signal oscilloscope provides a maximum sampling rate of 5 GSa/s and a memory depth of up to 100 Mpts. It adopts the exclusive Ultra Phosphor 3.0 technology, achieving a waveform capture rate of up to 2,000,000 wfms/s, and features a 256-level brightness color temperature display. With an advanced digital trigger system, it achieves trigger accuracy of 10 ps. The oscilloscope supports 9 types of advanced triggers, 9 types of serial bus triggering and decoding, and advanced functions and analysis modes such as spectrum analysis, power analysis, histograms, waveform recording, enhanced resolution, pass/fail testing, search, and navigation. It is also equipped with extensive measurement and mathematical calculation functions. The device features a 10.1-inch capacitive touchscreen, supporting various gestures for common waveform operations, as well as a WebServer for remote control. It is a versatile and powerful instrument.

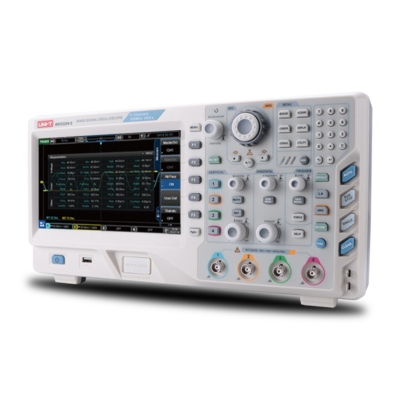

The MSO/UPO2000 series digital phosphor oscilloscope is a multifunctional and high-performance oscilloscope based on UNI-T's original Ultra Phosphor technology. It realizes the combination of ease of use, excellent technical indicators and many functional features. It can help users complete the measurement work faster. It is an oscilloscope designed for general design / debugging / testing needs in many fields, such as communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education, etc. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and low wave signals.
UPO1000 series digital oscilloscope adopts Ultra Phosphor 2.0 technology . This series is equipped with three levels of bandwidth of 50MHz/100MHz/200MHz, and the real-time sampling rate is as high as 2GSa/s. The whole series is equipped with 4 channels as standard; supports independent DVM module; has rich trigger and bus decoding functions, and supports full-memory hardware real-time decoding. It can be widely used in embedd system design, instrumentation, consumer electronics, automotive electronics, field maintenance, and education and many other fields.

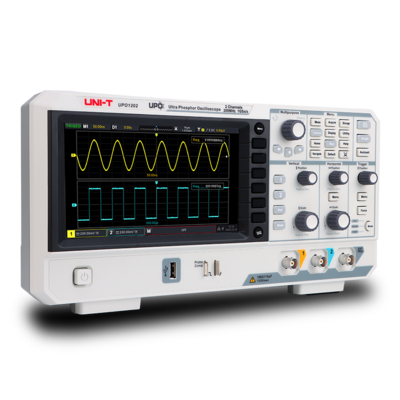

UPO1002 series digital phosphor oscilloscope adopts innovative UNI-T Ultra Phosphor 2.0 with new appearance upgrade and the function of deep storage, high waveform capture rate, real-time waveform recording and playback and 256-level grayscale display. The series support DVM module, rich trigger and bus decoding functions, and support full memory hardware real-time decoding. It widely used in many fields, including embedded system design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R&D and education.

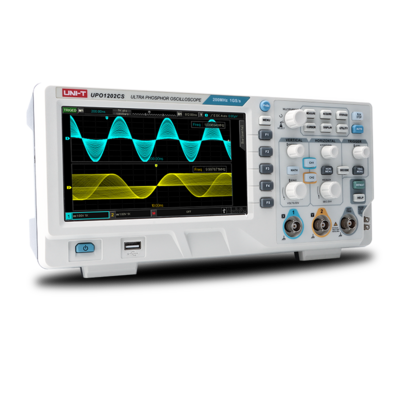

UPO1000CS series is a multi-function, cost-effective digital phosphor oscilloscope. It can be widely used in the fields of electronic and electrical design, debugging, education and industrial design. UPO1000CS series adopts parallel digital signal processing technology, which greatly improves the data processing speed and waveform capture rate. The original Ultra Phosphor technology can present the cumulative effect of the tested signal as a multi-layered afterglow. Compared with traditional digital storage oscilloscopes, the persistence of digital phosphor oscilloscopes can present three-dimensional waveform data of amplitude, time and signal intensity. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and runt signals.

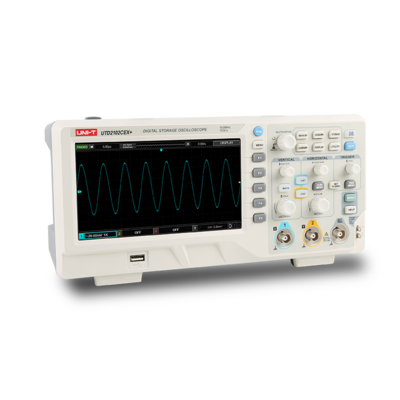

The UTD2000CEX+ provides a richer trigger mode, 34 kinds of automatic parameter measurement and common mathematical operation functions, and optimizes the panel operation, which greatly improves the work efficiency and can easily cope with the measurement needs of complex signals.

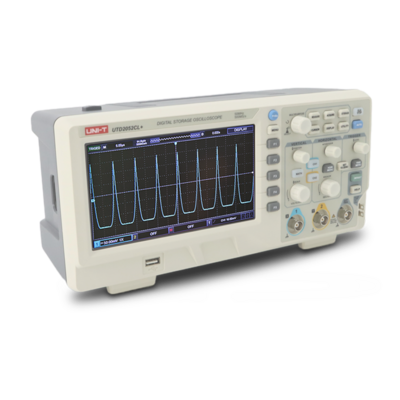

UTD2000CL+/CL Series aims to provide schools with digital storage oscilloscopes that are very close to those used in industries, so as to narrow the equipment gap between teaching and industries, so that graduates can easily start immediately after employment. Besides, the specifications are upgraded on the basis of the original UTD2000CL series to give back to the majority of UNI-T loyal users.

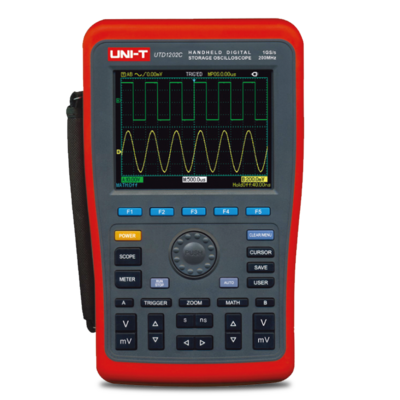

The UTD1000C Series handheld oscilloscope offers user-friendliness, outstanding technical indicators and a host of advanced features which can be powered by external AC power supply or powered by built-in lithium batiery. Its powerful trigger and analytical functions also make it easy to acquire and analyses waveforms, while the sharp and clear LCD and mathematics functions ensure clear observation and reliable analysis of signal conditions. It is the perfect tool for completing testing switily and efficiently. As the design is based on the controls of traditional instruments, users can use the new units without spending considerable time in learning and familiarizing with operation.
The UTD1000L Series is an economical hand-held digital storage oscilloscope, which integrates oscilloscope, multi-meter, trend chart and waveform recording function. The compact and portable design brings different visual and operational experience to users. This series can be powered by external power supply or built-in lithium batieries. It is a popular portable measuring instrument tailored for engineers.
