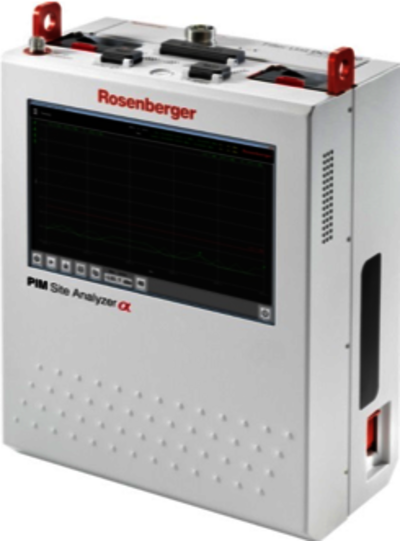

Bild Rosenberger Alpha (modular!)

Rosenberger Alpha (modular!)

PIM-Tester und –Analysator mit einfach wechselbaren Filtermodulen für die Frequenzbereiche 700, 800, 900, 1800, 2100, 2600MHz

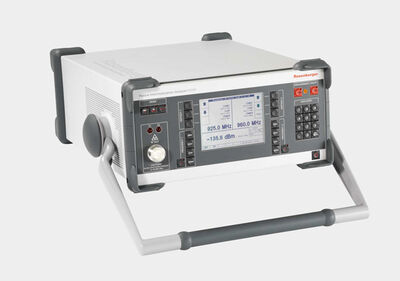

Bild Rosenberger IM-039P TETRA-PIM-Tester

Rosenberger IM-039P TETRA-PIM-Tester

Detected Signal: 3rd, 5th, 7th, 9th, 11th, 15th and 17th order intermodulation product



Test Signals:

  • TX Frequency: 390 MHz … 395 MHz
  • RX Frequency: 380 MHz … 385 MHz
  • Power at test port: 2 x up to min. +36 ... +46 dBm
  • Output power accuracy: ±0.35dB
  • Display: Display the real-time measurement results on the screen
  • Storage: Store measurement results on USB Stick or external contr.
